- The co-branded Axisflying x BlackBird v4 2307 5-inch brushless motor is a top-quality FPV freestyle option, featuring Sbang technology. Designed for 5-inch drones, it delivers excellent power, responsiveness, and durability—ideal for dynamic aerial maneuvers, blending both brands' expertise.
-BBV4 motors released with two KVs, 2060 and 1960 for 6s. 2060 is the favorite kv for Blackbird, it is an extrem kv design for top pilots who is really forcusing on extrem freestyle movement, such like sbang. 1960 kv is easy for every freestyle pilots to tune and funfly.
*Bearing Shield Technology
- An IP53 rating dustproof and waterproof bearing placement design.
- BST protects from environmental elements and prolongs the smoothness and lifespan of the bearng .
- Increased thrust effciency and say goodbye to crush motor bearings
*Specs
- 1960KV is proxy edition for 6S
- 2060KV is extreme edition for 6S
- Configuration: 12N14P / N52H arc magnet
- Motor stator size: 2307.3
- Motor cables: AWG 20#, 150MM
- Motor dimensions (Dia *Len): Φ27.8*32.9MM / M5 shaft
- Motor weight (including 150MM cables) : 34.74g
- The motor is very powerful that can get over 1.9KG and most current is about 50A

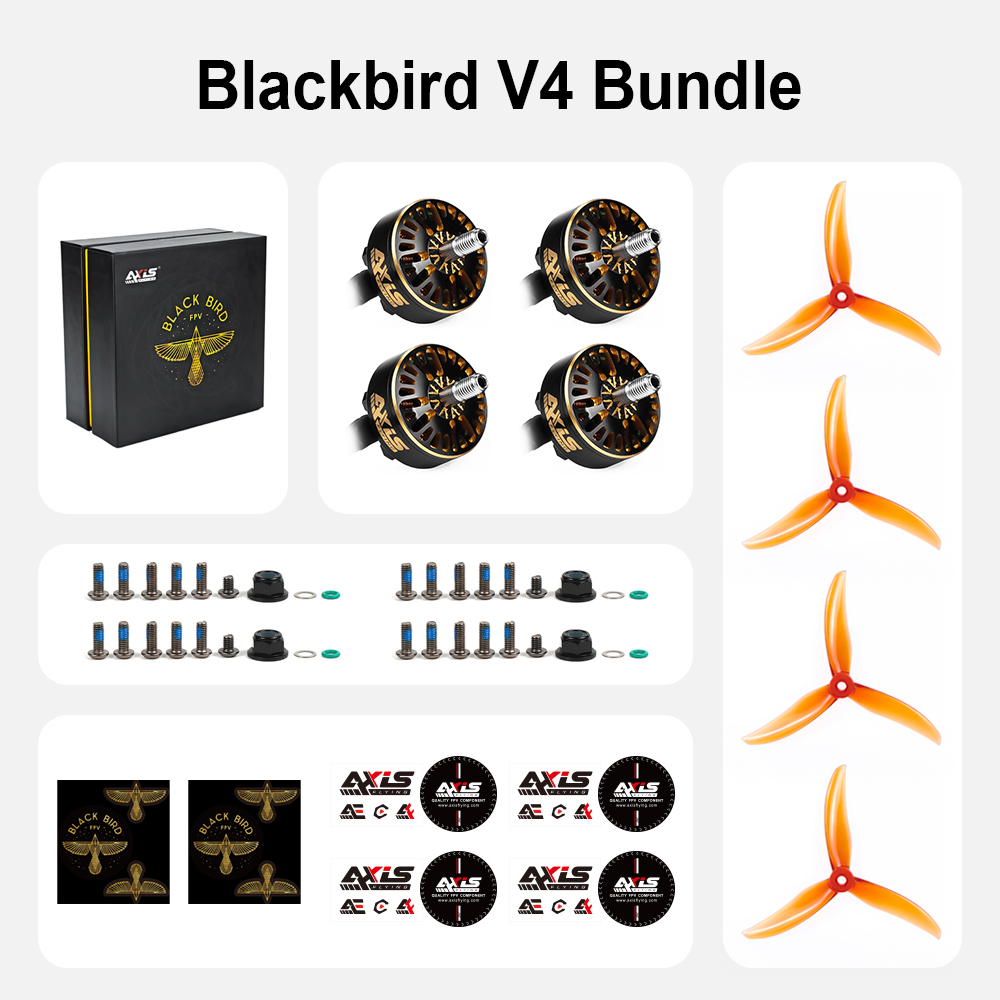

*Package
- 1* BBV4 motor
- 4* M3*8 screws for motor
- 1* M3*4 screw for lock shaft
- 1* M5 Flanged Nylon Insert lock
- 1* O-ring
- 2* Washers
